Bridge Console - Completed SN#21-3-00

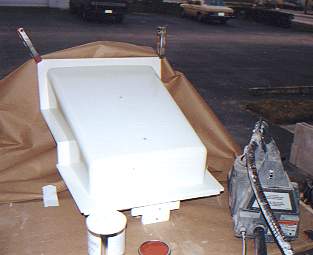

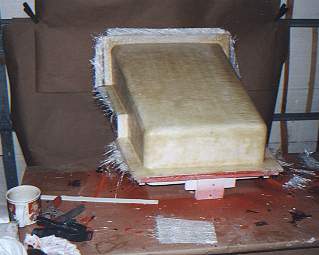

Plug configured for molding	Ready to shoot with tooling gelcoat	Red tooling gelcoat	Glassing the plug

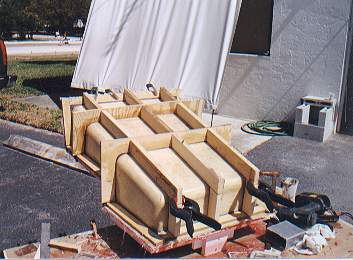

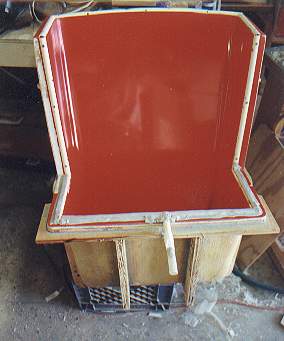

Reinforcing the mold	Finished mold w/ vacuum porting	Polyurethane vacuum bag built	1st 3 courses of glass

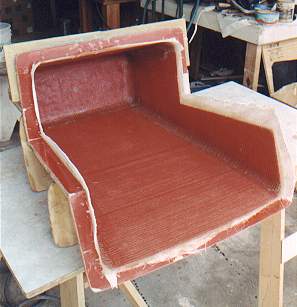

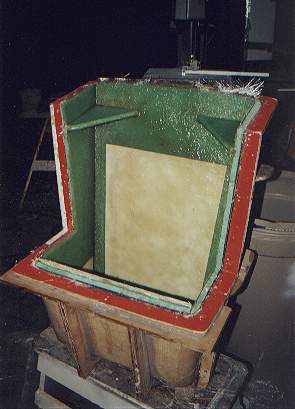

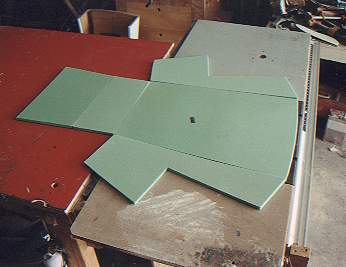

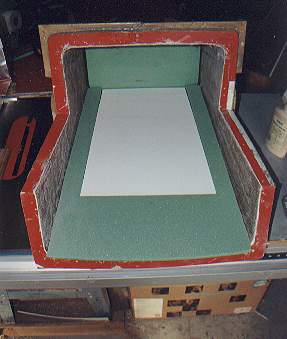

Divinycell core layout	Divinycell and PVC foam board cores	Final layup	Console removed from mold

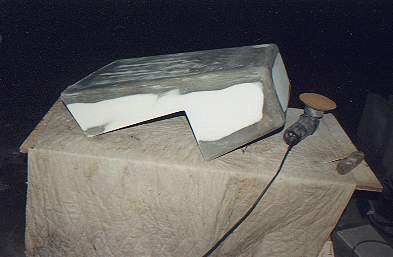

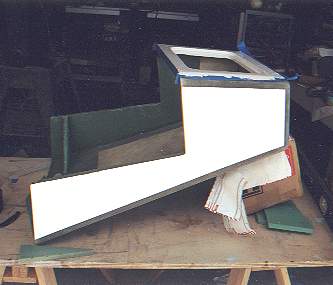

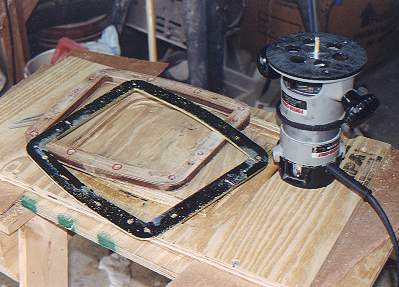

gelcoat fairing material	Fairing	Final gelcoat priming	Console bezel jigged for cutting

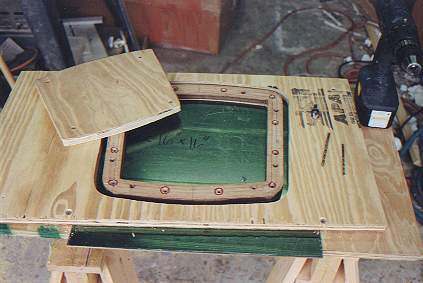

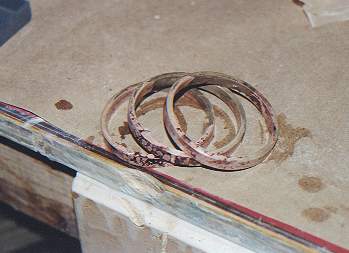

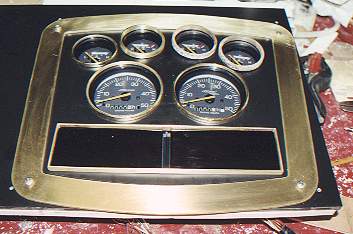

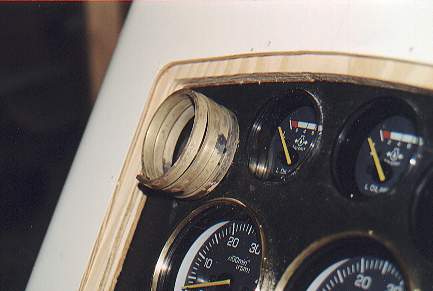

Console bezel rough cut	Coiling bezel stock	Gauge bezel stock made	Gauge layout w/ partially finished bezels

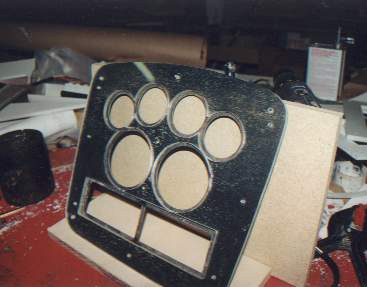

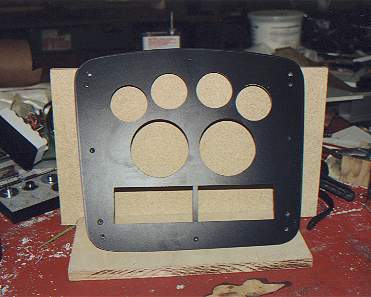

Gauge face plate	Back, showing locking layer	Same template as bezel is used to cut opening	Trial setup in plug

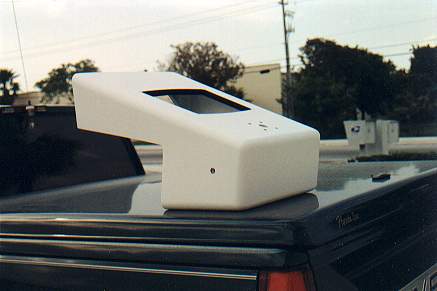

Base Console	Detail showing white PVC foam board core

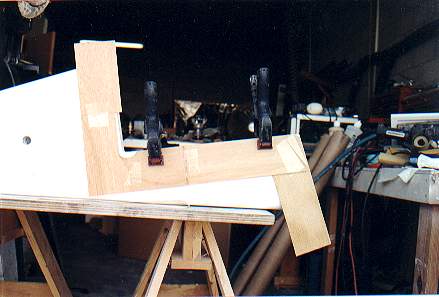

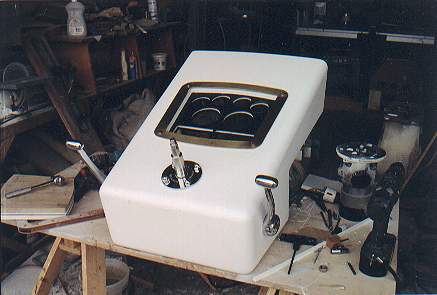

Pre-fitting equipment	Adjustable template for to aid in fitting to specific boat

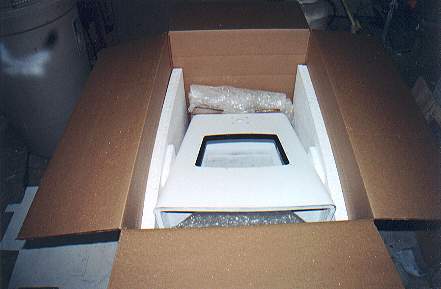

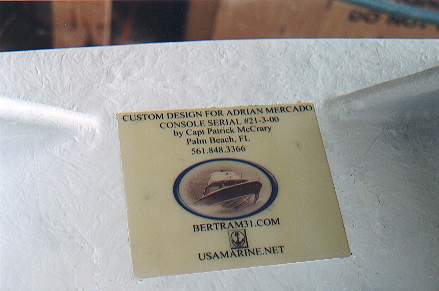

Addition of Serial #	Configuring packing design
